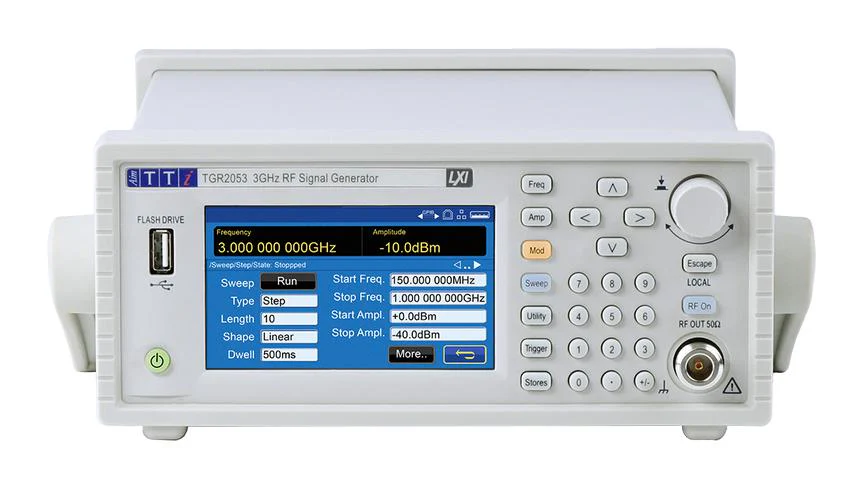

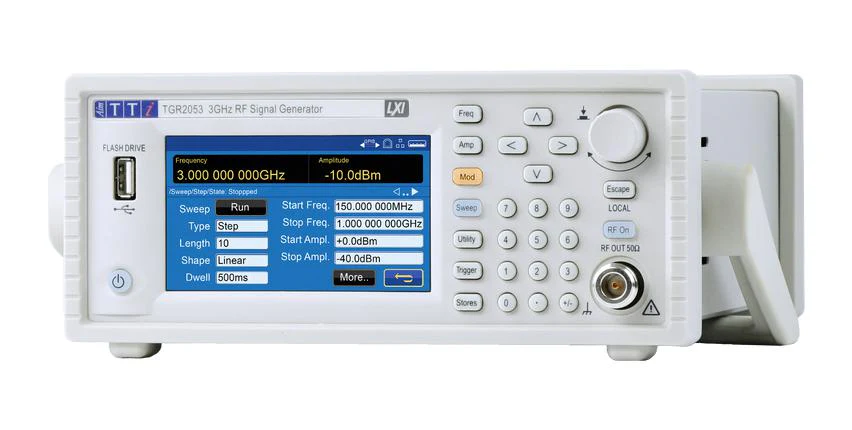

AIM-TTI Instruments TGR2053 TGR2053 TGR Series

150KHz to 3GHz RF signal generator with frequency setting resolution of 10Hz at up to 3GHz.

• High signal purity, phase noise <-117dBc/Hz (typical) at 1GHz output and 10kHz offset
• Amplitude range of -127dBm to +13dBm
• 0.1dBm amplitude setting resolution
• Internal or external analogue modulations (AM, FM, PM)
• Amplitude can be set in dBm, dBµV or in linear Volts.
• Internal or external digital modulations - ASK, OOK, FSK, 3FSK, 4FSK, GFSK, MSK, GMSK, HMSK and PSK with U01 option
• Modulation synchronisation
• Fast amplitude and/or frequency sweeps with comprehensive triggering
• 5ms sweep settling time
• 1ppm frequency accuracy, <1ppm drift in first year

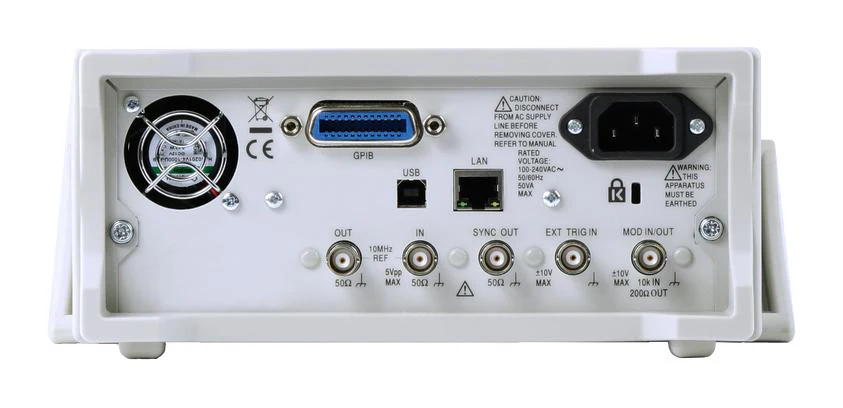

• Modulation waveform output on the rear panel
• Internal waveforms include: Sine, Square, Ramp, Triangle, PRBS (various lengths) and user-defined pattern
• Simple operation with the colour touch screen
• Programmable via USB, LAN (LXI) and GPIB (optional), SCPI compatible

Other details

Brand	AIM-TTI INSTRUMENTS
Part Number	TGR2053
Quantity	Each
Technical Data Sheet EN
