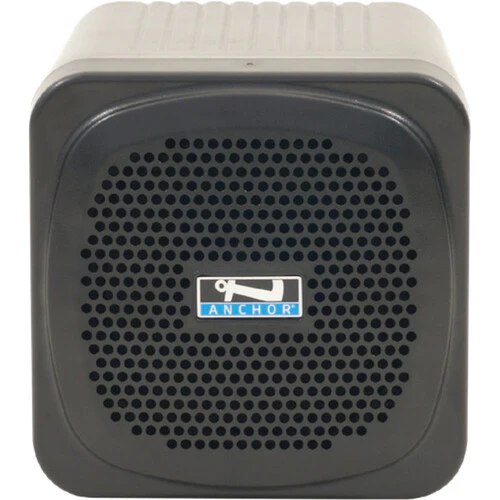

Anchor Audio Mini U2BT Miniature Bluetooth Speaker with AnchorLink Wireless Mic Receiver
Anchor Audio AN-MINI-U2BT Overview
Designed to project clear and intelligible speech or play music via wired connections or Bluetooth, the Anchor AudioĀ Mini U2BTĀ is a compact and lightweight public-address system that delivers up to 30W of power with 100 dB of clear sound, reaching crowds up to 100 people for public gathering, tour, emergency-preparedness, field-trip applications, and more.
The built-in dual-channel receiver lets you connect two wireless microphones at a range of 150' (line-of-sight). The receiver operates in the less-populated 1.9 GHz frequency range with automatic frequency hopping to deliver a clear signal with reduced interference. A 1/4" mic jack lets you connect a traditional handheld microphone (available separately). The unit features a 3.5mm line input for connecting a portable player, instrument, or CD player, while a 3.5mm line output lets you connect an external mixer, recorder, or additional speaker.
- Portable, public-address system reaches crowds of 100+
- Wearable, compact, and lightweight
- 30W of power for 100 dB of clear sound
- 4.5" neodymium woofer
- Bluetooth connectivity
- 1/4" input for wired micĀ (microphone available separately)
- Connect two wireless mics
- Compatible with WH-LINK and WB-LINK transmitters (available separately)
- Wireless frequency range: 1.9 GHz
- 3.5mm line input for connecting a CD player, MP3 player, or instrument
- 3.5mm line output to send signal to an external recorder or amplification system
- Listen to external audio source and microphone simultaneously
- Powered via ten AA batteries or AC-30 AC adapter (available separately)
- Operate 10 to 12 hours on fresh batteries
Items Included
- Anchor Audio Mini U2BT Miniature Bluetooth Speaker with AnchorLink Wireless Mic Receiver
- Limited 6-Year Manufacturer Warranty
Not Included
- Essential Batteries
Additional Resources
Anchor Audio AN-MINI-U2BT Specs
| Speaker Configuration |
1x Full-Range Loudspeaker
|
| Number of Input Channels |
2 (1 x Mono, 1 x Stereo)
|
| Amplifier Power Rating |
30 W
|
| Audio I/O |
1x 1/4" TS Unbalanced Mic Input
1x 1/8" / 3.5 mm TRS Unbalanced Line Input 1x 1/8" / 3.5 mm TRS Line Thru |
| USB I/O |
No
|
| Wireless Connectivity |
Bluetooth
|
| Speaker Configuration |
1x Full-Range Loudspeaker
|
| Number of Input Channels |
2 (1 x Mono, 1 x Stereo)
|
| Amplifier Power Rating |
30 W
|
| Full-Range Driver |
1x 4.5" / 11.4Ā cm Cone
|
| Magnet |
Neodymium
|
| Frequency Response |
100 Hz to 15 kHz Ā±3 dB
|
| Maximum SPL |
100 dB
|
| I/O Impedance |
Hi-Z Input:
10 Kilohms Low-Z Input: 1 Kilohms Line Output: 600 Ohms |
| Audio I/O |
1x 1/4" TS Unbalanced Mic Input
1x 1/8" / 3.5 mm TRS Unbalanced Line Input 1x 1/8" / 3.5 mm TRS Line Thru |
| USB I/O |
No
|
| Mobile App Compatible |
No
|
| Network I/O |
No
|
| Wireless Connectivity |
Bluetooth
|
| Max Wireless Range |
300' / 91.4Ā m (Line of Sight)
|
| Form Factor |
Receiver:
Built-In |
| Diversity |
Yes
|
| Battery Type |
10x AA (Not Included)
|
| Approximate Battery Life |
10 to 12 Hours
|
| Environmental Resistance |
No
|
| Dimensions |
7 x 6 x 3.5" / 17.8 x 15.2 x 8.9Ā cm
|
| Weight |
2.6Ā lb / 1.2Ā kg
|
| Package Weight |
2.39 lb
|
| Box Dimensions (LxWxH) |
11.9 x 9.4 x 6.1"
|
All product and company names are trademarksā¢ or registeredĀ® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
