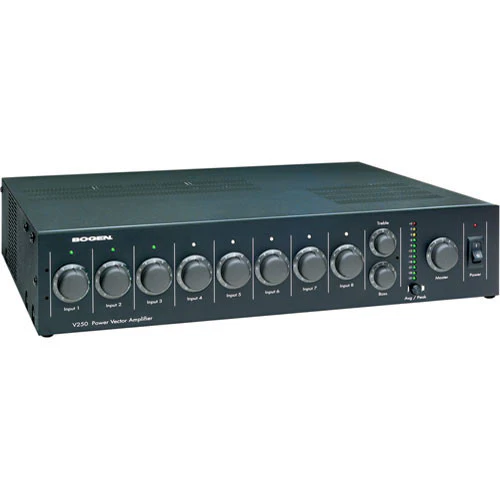

Bogen Communications V250 Power Vector Modular Input Amplifier 250W
- 8 Module Bays
- 4 Priority Levels
- Motorized Volume Control
- 11-Segment LED Output Level Meter
The Bogen V250 Power Vector Amplifier 250W with 8 module bays for a wide array of inputs and outputs. Modules are available for signal processing and inputs such as: balanced and unbalanced inputs; stereo or mono; telephone systems/PBXs; transformer-isolated; microphones; tone generator; and bridging. The Power Vector automatically senses each module and inserts it into the signal path. A 5-position barrier strip allows for 4/8ohm or 25/70V output loads. When you need an amplifier with flexibility and reliability, the Power Vector V250 is the obvious choice.
- 8 module bays for inputs and outputs
Each input has a independant volume control
- 4 levels of priority between modules
- 125Hz Lo-cut filter for module 6
- 11-segment LED output level meter monitors the output level of the power amplifier with peak and average meter switch
- Grounded, un-switched AC convenience receptacle with a 500W maximum capacity provided for external equipment
- Remote volume control panel can operate motorized volume control (RVCP sold separately)
- 1-Year Warranty
| Power Output | 250W |
| Distortion | <0.5% |
| Frequency Response | Transformer: 45-20,000Hz Direct output: 20-20,000Hz |
| Signal to Noise Ratio | Fundamental: -94 dB With Aux Module: -70 dB With Mic Module: -60 dB With Tel Module: -70 dB |
| Output Impedance | Transformer-Coupled: 70V, 25V, 8 ohms (balanced or unbalanced) Direct Coupled: 4 ohms |
| Muting | 4 Steps: -60, -21, -10, 0dB |
| Output Connections | Pre-EQ (RCA) x 1 Signal Processor (RCA) x 1 2 module bays |
| Input Connections | 8 module bays |
| Specialties | 500W unswitched grounded outlet |
| Dimensions | 16.5 x 3.5 x 12" (419.1 x 88.9 x 304.8mm) |
| Weight | 40 lbs (18.14kg) |
| Packaging Info | |
|---|---|
| Package Weight | 32.6 lb |
| Box Dimensions (LxWxH) | 17.6 x 8.5 x 2.5" |
