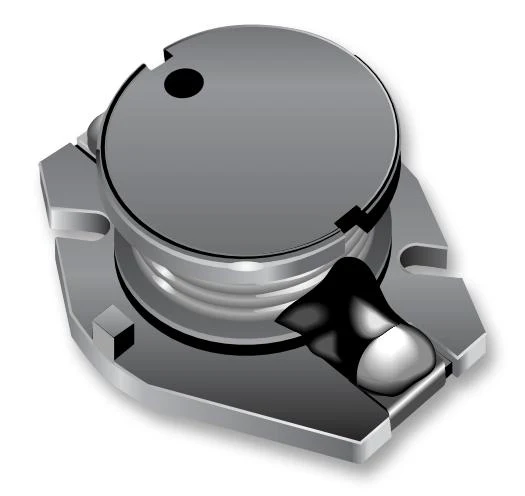

Bourns SDR1005-151KL Power Inductor (SMD) 150 µH 800 mA Unshielded 1 A SDR1005 Series 12.7mm x 10mm 5mm
This is a Power Inductor (SMD), 150 µH, 800 mA, Unshielded, 1 A, SDR1005 Series, 12.7mm x 10mm x 5mm product from BOURNS with the model number SDR1005-151KL
Product details
| Inductance | 150µH |
| RMS Current (Irms) | 800mA |
| Inductor Construction | Unshielded |
| Saturation Current (Isat) | 1A |
| Product Range | SDR1005 Series |
| Power Inductor Case | 12.7mm x 10mm x 5mm |
| DC Resistance Max | 0.59ohm |
| Inductance Tolerance | ± 10% |
| RoHS Phthalates Compliant | To Be Advised |
Other details
| Brand | BOURNS |
| Part Number | SDR1005-151KL |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
| 3D Product Image EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
$0.33
Original: $1.09
-70%Bourns SDR1005-151KL Power Inductor (SMD) 150 µH 800 mA Unshielded 1 A SDR1005 Series 12.7mm x 10mm 5mm—
$1.09
$0.33Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
This is a Power Inductor (SMD), 150 µH, 800 mA, Unshielded, 1 A, SDR1005 Series, 12.7mm x 10mm x 5mm product from BOURNS with the model number SDR1005-151KL
Product details
| Inductance | 150µH |
| RMS Current (Irms) | 800mA |
| Inductor Construction | Unshielded |
| Saturation Current (Isat) | 1A |
| Product Range | SDR1005 Series |
| Power Inductor Case | 12.7mm x 10mm x 5mm |
| DC Resistance Max | 0.59ohm |
| Inductance Tolerance | ± 10% |
| RoHS Phthalates Compliant | To Be Advised |
Other details
| Brand | BOURNS |
| Part Number | SDR1005-151KL |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN | |
| 3D Product Image EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
