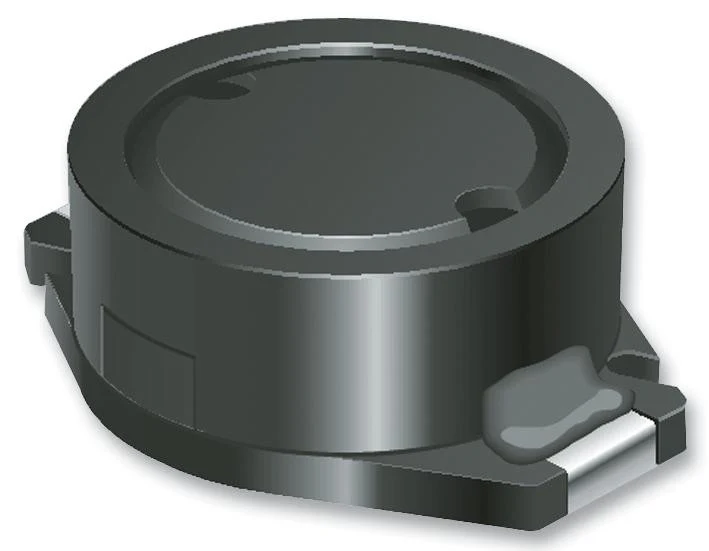

BOURNS SRR0805-121K Surface Mount Power Inductor, SRR0805 Series, 120 µH, 450 mA, 660 mA, Shielded, 0.75 ohm
This is a Surface Mount Power Inductor, SRR0805 Series, 120 µH, 450 mA, 660 mA, Shielded, 0.75 ohm product from BOURNS with the model number SRR0805-121K
Product details
| Inductance Tolerance | ± 10% |
| RMS Current (Irms) | 450mA |
| Saturation Current (Isat) | 660mA |
| Power Inductor Case | 10.5mm x 8mm x 4.7mm |
| Inductance | 120µH |
| Inductor Construction | Shielded |
| Product Range | SRR0805 Series |
| DC Resistance Max | 0.75ohm |
| Packaging | Cut Tape |
Other details
| Brand | BOURNS |
| Part Number | SRR0805-121K |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
$0.33
Original: $1.11
-70%BOURNS SRR0805-121K Surface Mount Power Inductor, SRR0805 Series, 120 µH, 450 mA, 660 mA, Shielded, 0.75 ohm—
$1.11
$0.33Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
This is a Surface Mount Power Inductor, SRR0805 Series, 120 µH, 450 mA, 660 mA, Shielded, 0.75 ohm product from BOURNS with the model number SRR0805-121K
Product details
| Inductance Tolerance | ± 10% |
| RMS Current (Irms) | 450mA |
| Saturation Current (Isat) | 660mA |
| Power Inductor Case | 10.5mm x 8mm x 4.7mm |
| Inductance | 120µH |
| Inductor Construction | Shielded |
| Product Range | SRR0805 Series |
| DC Resistance Max | 0.75ohm |
| Packaging | Cut Tape |
Other details
| Brand | BOURNS |
| Part Number | SRR0805-121K |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
