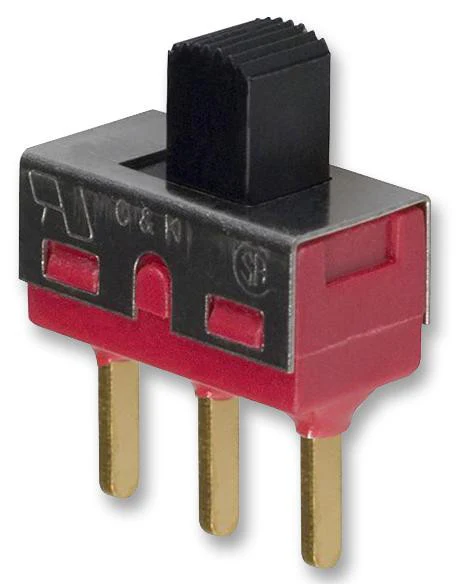

C & K COMPONENTS 1101M2S3CQE2 Slide Switch, SPDT, On-None-On, Through Hole, 1000 Series, 6 A, 250 V
The 1101M2S3CQE2 is a single-pole double-throw through hole Miniature Slide Switch with SP On-None-On function and vertical orientation. PC mount without tabs, 0.2-inch high actuator and silver contacts with epoxy seal. Diallyl phthalate UL94V-0 case, standard black nylon actuator, stainless steel housing and matte-tin plated brass or steel switch support.
- 10?R Insulation resistance
- 1000V Dielectric strength
- Black actuator
Applications
Test & Measurement, Communications & Networking, Computers & Computer Peripherals
Product details
| Orientation | Vertical |
| Contact Voltage DC Max | 28V |
| Switch Operation | On-None-On |
| Switch Mounting | Through Hole |
| Contact Configuration | SPDT |
| Product Range | 1000 Series |
| Contact Current Max | 6A |
| Contact Voltage AC Max | 250V |
Other details
| Brand | C & K COMPONENTS |
| Part Number | 1101M2S3CQE2 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
$2.83
Original: $9.42
-70%C & K COMPONENTS 1101M2S3CQE2 Slide Switch, SPDT, On-None-On, Through Hole, 1000 Series, 6 A, 250 V—
$9.42
$2.83Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The 1101M2S3CQE2 is a single-pole double-throw through hole Miniature Slide Switch with SP On-None-On function and vertical orientation. PC mount without tabs, 0.2-inch high actuator and silver contacts with epoxy seal. Diallyl phthalate UL94V-0 case, standard black nylon actuator, stainless steel housing and matte-tin plated brass or steel switch support.
- 10?R Insulation resistance
- 1000V Dielectric strength
- Black actuator
Applications
Test & Measurement, Communications & Networking, Computers & Computer Peripherals
Product details
| Orientation | Vertical |
| Contact Voltage DC Max | 28V |
| Switch Operation | On-None-On |
| Switch Mounting | Through Hole |
| Contact Configuration | SPDT |
| Product Range | 1000 Series |
| Contact Current Max | 6A |
| Contact Voltage AC Max | 250V |
Other details
| Brand | C & K COMPONENTS |
| Part Number | 1101M2S3CQE2 |
| Quantity | Each |
| Technical Data Sheet EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
