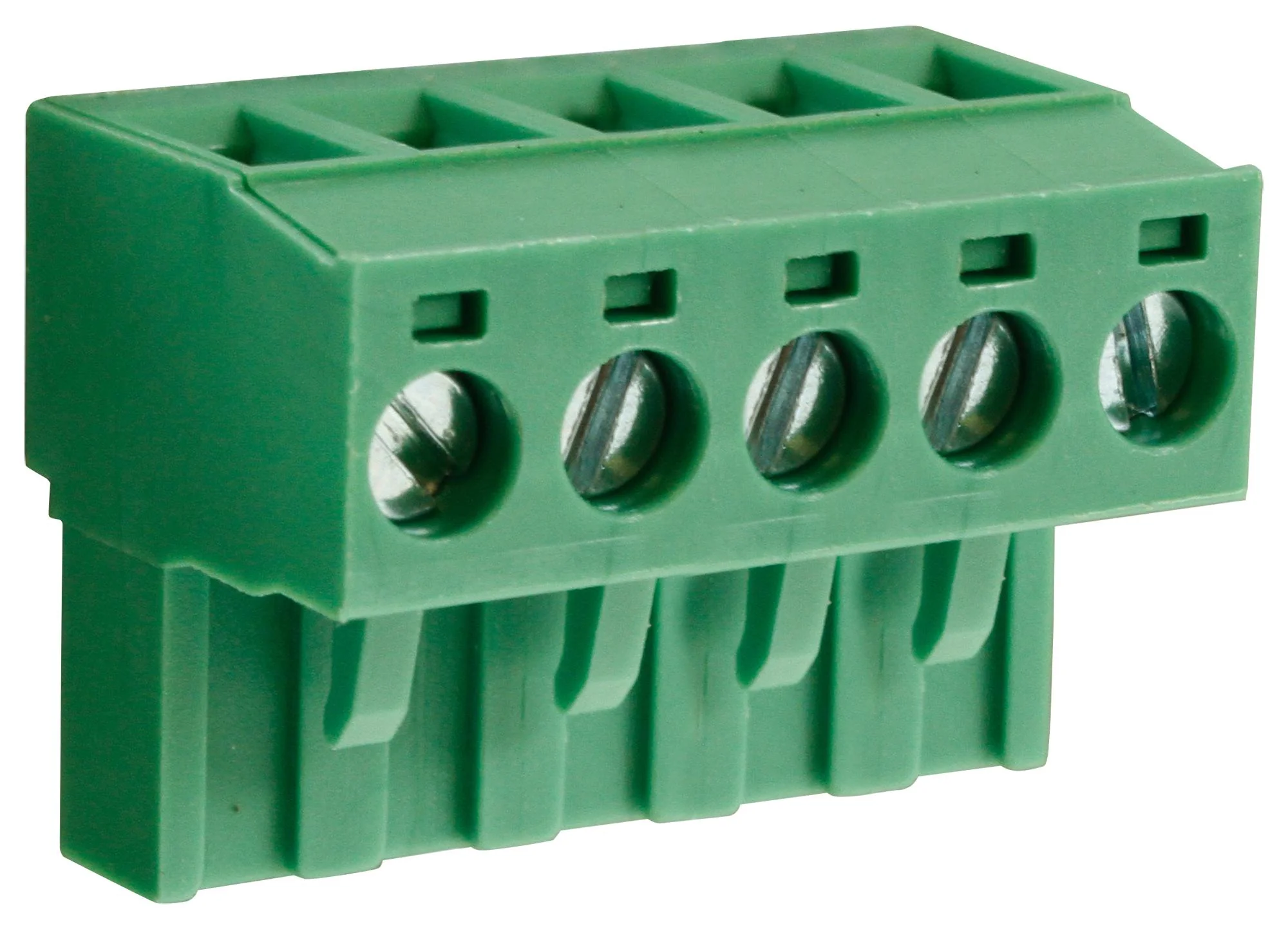

Camdenboss CTBP9208/5 CTBP9208/5 Pluggable Terminal Block 5.08 mm 5 Ways 28AWG to 14AWG 1.5 mm² Clamp 15 A
- Wire size of 1.5mm² (28AWG to 14AWG) solid & stranded cable
- Professional rising clamp terminal, anti solder wicking
- Captive screws
- Guided pin alignment
- Insulation resistance is 500Mohm/500V withstand voltage is AC2000V/1min, 20mohm contact resistance
- Working temperature range from -40°C to 105°C
- Brass, nickel plated rising clamp
- Tin plated brass pin
- M3 Steel, zinc plated
- Length: 25.4mm
Other details
| Brand | CAMDENBOSS |
| Part Number | CTBP9208/5 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
$0.61
Original: $2.03
-70%Camdenboss CTBP9208/5 CTBP9208/5 Pluggable Terminal Block 5.08 mm 5 Ways 28AWG to 14AWG 1.5 mm² Clamp 15 A—
$2.03
$0.61Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
- Wire size of 1.5mm² (28AWG to 14AWG) solid & stranded cable
- Professional rising clamp terminal, anti solder wicking
- Captive screws
- Guided pin alignment
- Insulation resistance is 500Mohm/500V withstand voltage is AC2000V/1min, 20mohm contact resistance
- Working temperature range from -40°C to 105°C
- Brass, nickel plated rising clamp
- Tin plated brass pin
- M3 Steel, zinc plated
- Length: 25.4mm
Other details
| Brand | CAMDENBOSS |
| Part Number | CTBP9208/5 |
| Quantity | Each |
| Technical Data Sheet EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
