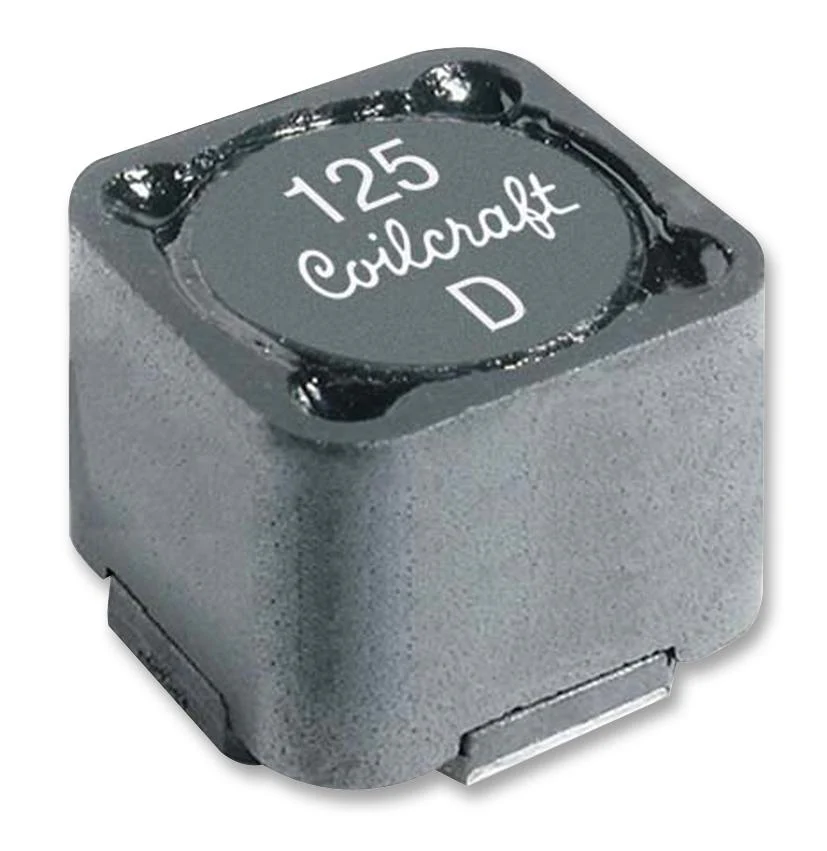

Coilcraft MSS1210-105KED MSS1210-105KED Power Inductor (SMD) 1 mH A Shielded 980 mA MSS1210 12.3mm x 10mm
The MSS1210-105KED is a surface mount shielded Power Inductor with ferrite core. This inductor features matte tin over nickel over phosphor bronze terminations and is resistance to soldering heat maximum three 40 seconds reflows at +260°C, parts cooled to room temperature between cycles. This inductor also features moisture sensitivity level (MSL) of 1, failures in time (FIT)/mean time between failures (MTBF) is 38 per billion hours/26,315,789 hours, calculated per Telcordia SR-332 and only pure water or alcohol recommended for wash. DC current at which the inductance drops the specified amount from its value without current and Inductance tested at 100kHz, 0.1Vrms, 0ADC using an Agilent/HP 4263B LCR meter or equivalent.
- Low DCR and excellent current handling
- Halogen-free
Other details
| Brand | COILCRAFT |
| Part Number | MSS1210-105KED |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
| Product Change Notice EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
$2.33
Original: $7.76
-70%Coilcraft MSS1210-105KED MSS1210-105KED Power Inductor (SMD) 1 mH A Shielded 980 mA MSS1210 12.3mm x 10mm—
$7.76
$2.33Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The MSS1210-105KED is a surface mount shielded Power Inductor with ferrite core. This inductor features matte tin over nickel over phosphor bronze terminations and is resistance to soldering heat maximum three 40 seconds reflows at +260°C, parts cooled to room temperature between cycles. This inductor also features moisture sensitivity level (MSL) of 1, failures in time (FIT)/mean time between failures (MTBF) is 38 per billion hours/26,315,789 hours, calculated per Telcordia SR-332 and only pure water or alcohol recommended for wash. DC current at which the inductance drops the specified amount from its value without current and Inductance tested at 100kHz, 0.1Vrms, 0ADC using an Agilent/HP 4263B LCR meter or equivalent.
- Low DCR and excellent current handling
- Halogen-free
Other details
| Brand | COILCRAFT |
| Part Number | MSS1210-105KED |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN | |
| Product Change Notice EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
