DIODES INC. ZVN0545GTA Power MOSFET, N Channel, 450 V, 140 mA, 50 ohm, SOT-223, Surface Mount

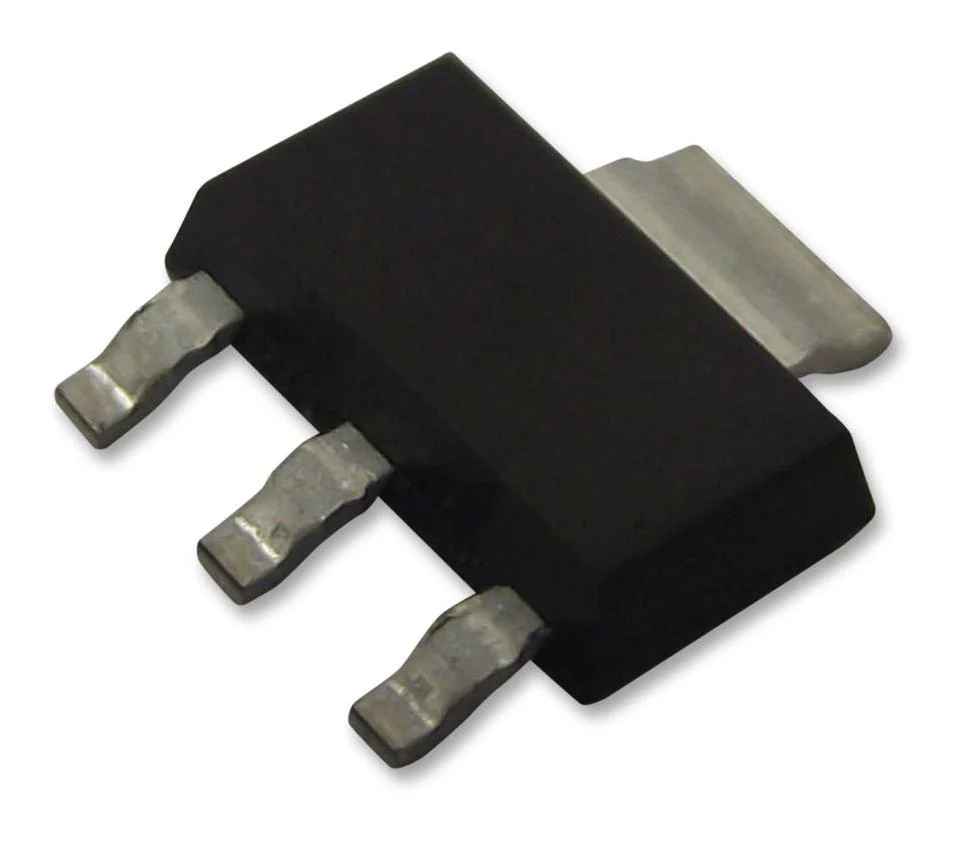

Product image 1

DIODES INC. ZVN0545GTA Power MOSFET, N Channel, 450 V, 140 mA, 50 ohm, SOT-223, Surface Mount

The ZVN0545GTA is a N-channel enhancement-mode Vertical DMOSFET with moulded plastic case and solderable matte tin annealed over copper lead-frame terminals as per MIL-STD-202 standard.
  • Halogen-free, Green device
  • Qualified to AEC-Q101 standards for high reliability
  • Moisture sensitivity level 1 as per J-STD-020
  • UL94V-0 Flammability rating

Applications

Power Management, Automotive, Aerospace, Defence, Military, Industrial

Warnings

Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Product details

Channel Type: N Channel
Drain Source Voltage Vds: 450V
Continuous Drain Current Id: 140mA
Drain Source On State Resistance: 50ohm
Transistor Case Style: SOT-223
Transistor Mounting: Surface Mount
Rds(on) Test Voltage: 10V
Gate Source Threshold Voltage Max: 3V
Power Dissipation: 2W
No. of Pins: 3Pins
Operating Temperature Max: 150°C
Product Range: -
Qualification: -
MSL: MSL 1 - Unlimited

Other details

Brand DIODES INC.
Part Number ZVN0545GTA
Quantity Each (Supplied on Cut Tape)
Technical Data Sheet EN Download technical document - datasheet - Tanotis India

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
$0.61

Original: $2.03

-70%
DIODES INC. ZVN0545GTA Power MOSFET, N Channel, 450 V, 140 mA, 50 ohm, SOT-223, Surface Mount—

$2.03

$0.61

Product Information

Shipping & Returns

Description

The ZVN0545GTA is a N-channel enhancement-mode Vertical DMOSFET with moulded plastic case and solderable matte tin annealed over copper lead-frame terminals as per MIL-STD-202 standard.
  • Halogen-free, Green device
  • Qualified to AEC-Q101 standards for high reliability
  • Moisture sensitivity level 1 as per J-STD-020
  • UL94V-0 Flammability rating

Applications

Power Management, Automotive, Aerospace, Defence, Military, Industrial

Warnings

Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Product details

Channel Type: N Channel
Drain Source Voltage Vds: 450V
Continuous Drain Current Id: 140mA
Drain Source On State Resistance: 50ohm
Transistor Case Style: SOT-223
Transistor Mounting: Surface Mount
Rds(on) Test Voltage: 10V
Gate Source Threshold Voltage Max: 3V
Power Dissipation: 2W
No. of Pins: 3Pins
Operating Temperature Max: 150°C
Product Range: -
Qualification: -
MSL: MSL 1 - Unlimited

Other details

Brand DIODES INC.
Part Number ZVN0545GTA
Quantity Each (Supplied on Cut Tape)
Technical Data Sheet EN Download technical document - datasheet - Tanotis India

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
