Eliminator Lighting Mega 64 Profile EP Wash Lighting Fixture
Eliminator Lighting Mega 64 Profile EP Overview
Lighting designers and event coordinators looking for a low-profile wash light will be impressed with the Eliminator Lighting Mega 64 Profile EP, a compact, low-profile wash fixture designed for uplighting, stage lighting, and wall washing.
The Mega 64 Profile EP is powered by twelve 4W quad (RGB+UV 4-in-1) LEDs. This Par is designed so it can sit directly on the ground or inside a truss without the hanging bracket. This unit offers smooth RGB+UV color mixing with no shadows. It has a 25° beam angle and 5 DMX channel modes for a variety of programming options.
- Ultrabright flat Par 64 with 12 x 4W Quad (RGB+UV 4-IN-1) LEDs
- Smooth RGB color mixing (fast or slow color change operation) with no RGB+UV shadows

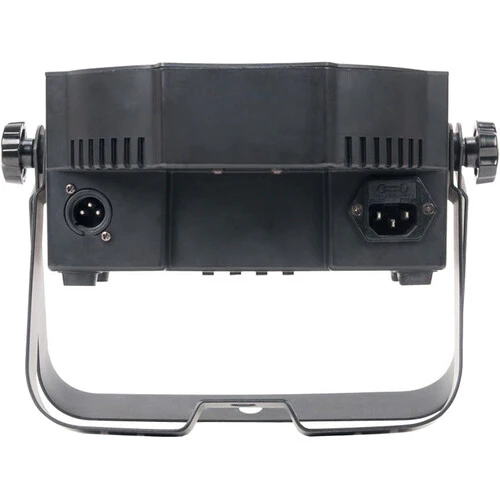

- Power and DMX ins/outs are designed to sit sideways, so the unit can be set flat on the ground
- Great as an architectural wall wash or for performance stages vs. traditional stage lighting, which can emit a lot of heat onto performers
- 5 DMX Channel Modes: 4/5/6/9/10 Channels
- 5 Operational modes: RGB+UV Dimmer, Sound-Active, Auto-Run (16 color-change programs, 16 color-fade programs, color-change and fade combinations), Static-Color, and DMX-Controlled modes
- Standalone or Primary/Secondary configuration
- Beam angle: 25 degrees

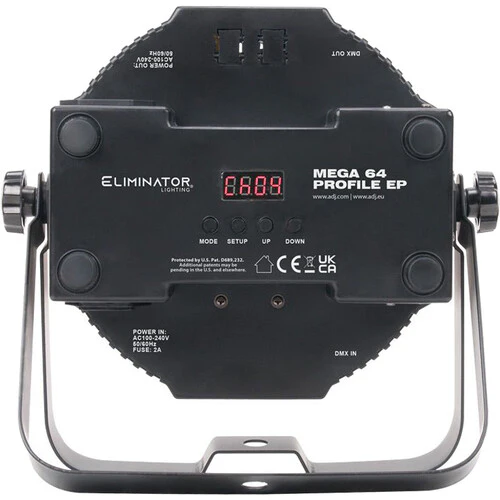

- 4-button DMX LED Display
- 64 built-in Color Macros
- Flicker free
- Refresh Rate: 504 Hz
- DMX-512 protocol
- LED Pulse and strobe effect
- Linkable via 3-pin XLR cable
- Wired digital communication network
- Electronic dimming: 0 to 100%
- Includes scissor yoke to hang on truss, mount on a wall, or set on the ground
- Power draw: 54W Max
- IEC AC input and output on rear to daisy-chain power (up to 12 Mega 64 Profile EP fixtures)
UPC: 810087371999
In the Box
- Eliminator Lighting Mega 64 Profile EP Wash Lighting Fixture
- IEC Power Cord
- Limited 2-Year Manufacturer Warranty
Additional Resources
Eliminator Lighting Mega 64 Profile EPSpecs
Key Specs
| Fixture Type |
PAR
|
| Light Source |
12x Color/UV LED
|
| Colors |
Blue, Green, Red, Ultraviolet
|
| Beam Angle |
25°
|
| Control Protocols |
DMX512
|
| AC Input Power |
100 to 240 VAC, 50/60 Hz
|
| Power / Current Consumption |
54 W
|
| Mounting |
Dual/Scissor Yoke
|
Light
| Fixture Type |
PAR
|
| Light Source |
12x Color/UV LED
|
| Colors |
Blue, Green, Red, Ultraviolet
|
| Photometrics |
25°:
327 fc / 3520 Lux at 6.6' / 2 m 76 fc / 820 Lux at 13.1' / 4 m |
| Beam Angle |
25°
|
| Iris |
No
|
| Zoom Adjustment |
No
|
| Dimming |
Electronic, 0 to 100%
|
Performance
| Operating Modes |
Automatic, Color Dimmer, DMX, Sound-Active, Static Color
|
| Macros / Programs |
64x Color Macro
16x Color Change 16x Color Fade |
| Effects |
Strobe
Pulse |
| Gobos |
No
|
| Refresh Rate |
504 Hz
|
Control
| Control Protocols |
DMX512
|
| DMX Channel Modes |
5 Mode(s):
4 / 5 / 6 / 9 / 10-Channel |
| Display / Controls |
LED
|
| Remote Control |
IR Remote (with Optional Equipment)
|
| Mobile App Compatible |
No
|
Connectivity
| Inputs/Outputs |
1 x XLR 3-Pin DMX Input
1 x XLR 3-Pin DMX Output |
| Wireless |
IR
|
| Wireless Range |
30' / 9.1 m
|
Power
| AC Input Power |
100 to 240 VAC, 50/60 Hz
|
| AC Power Connector |
Input: 1x IEC
Output: 1x IEC |
| Fuse |
2 A
|
| Power / Current Consumption |
54 W
|
| Power Linking |
12 Units
|
Physical
| Environmental Resistance |
No
|
| Mounting |
Dual/Scissor Yoke
|
| Included Accessories |
1x Power Cable
|
| Duty Cycle |
No
|
| Exterior Color |
Black
|
| Dimensions |
10.5 x 10.5 x 4.5" / 26.7 x 26.7 x 11.4 cm
|
| Weight |
5 lb / 2.3 kg
|
Packaging Info
| Package Weight |
5.98 lb
|
| Box Dimensions (LxWxH) |
12.8 x 12.3 x 6.3"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
