Harwin M22-7130542 PCB Receptacle Vertical Board-to-Board 2 mm 1 Rows 5 Contacts Through Hole Mount M22

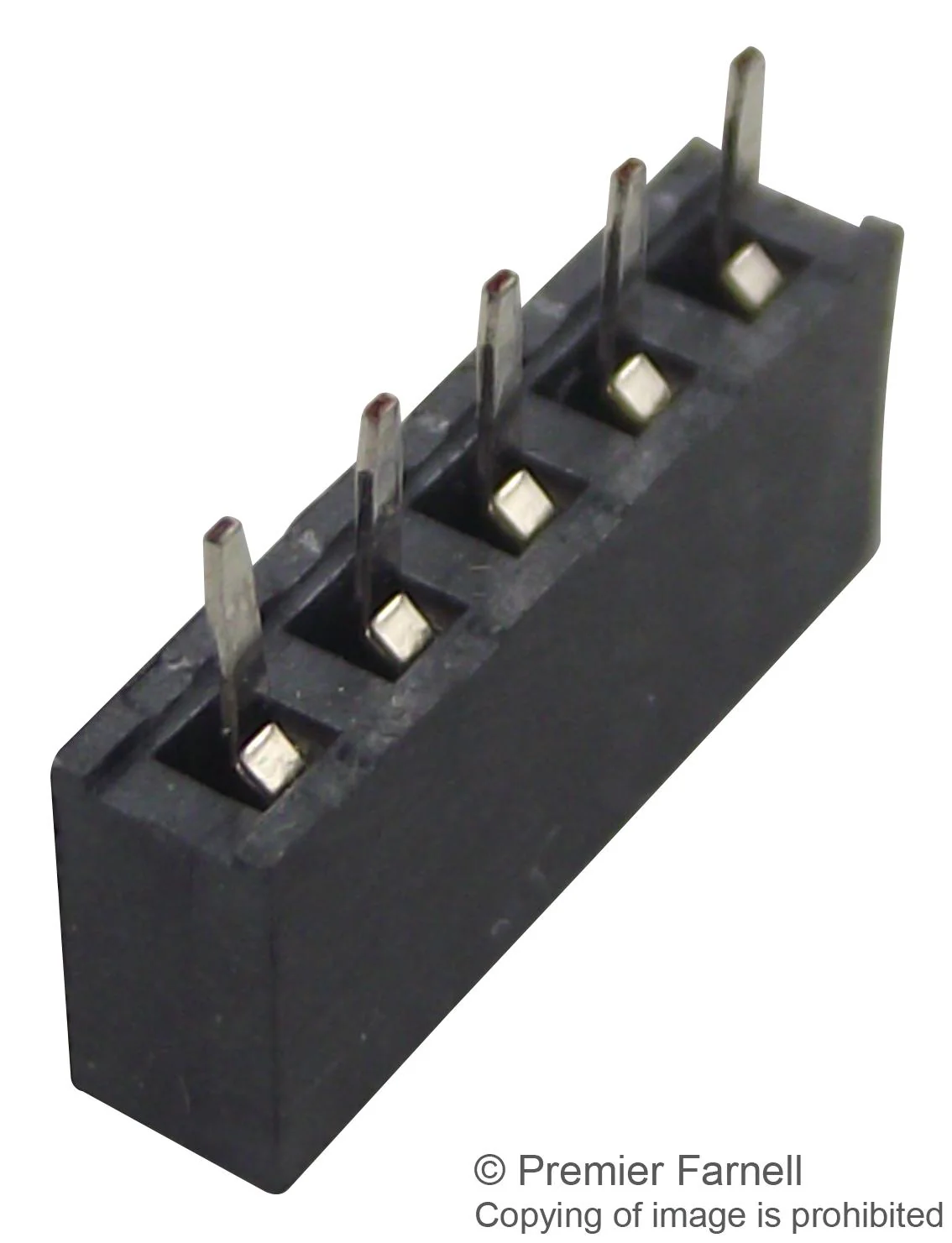

The M22-7130542 is a 5-contact 2mm female SIL Board-to-board Socket with gold plated phosphor bronze contacts, 100% tin over nickel plated termination and black UL94V-0 LCP housing. The M22 series receptacle has solder tails, vertical connector orientation, PC tail/through board connection type and top entry style. It is suitable for use with 0.5mm square mating pin size. Suitable for interconnecting board to board.
- 2A AC/DC Current rating
- 20mR Maximum contact resistance
- 1000MR Minimum insulation resistance
- 500V AC for one minute Dielectric withstand
Commercial, Industrial
Other details
| Brand | HARWIN |
| Part Number | M22-7130542 |
| Quantity | Each |
| Drawing EN |  |
| 3D Product Image EN | |
| Product Change Notice EN | |
| Manufacturer Catalogue EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
$0.58
Original: $1.92
-70%Harwin M22-7130542 PCB Receptacle Vertical Board-to-Board 2 mm 1 Rows 5 Contacts Through Hole Mount M22—
$1.92
$0.58Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The M22-7130542 is a 5-contact 2mm female SIL Board-to-board Socket with gold plated phosphor bronze contacts, 100% tin over nickel plated termination and black UL94V-0 LCP housing. The M22 series receptacle has solder tails, vertical connector orientation, PC tail/through board connection type and top entry style. It is suitable for use with 0.5mm square mating pin size. Suitable for interconnecting board to board.
- 2A AC/DC Current rating
- 20mR Maximum contact resistance
- 1000MR Minimum insulation resistance
- 500V AC for one minute Dielectric withstand
Commercial, Industrial
Other details
| Brand | HARWIN |
| Part Number | M22-7130542 |
| Quantity | Each |
| Drawing EN | |
| 3D Product Image EN | |
| Product Change Notice EN | |
| Manufacturer Catalogue EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
