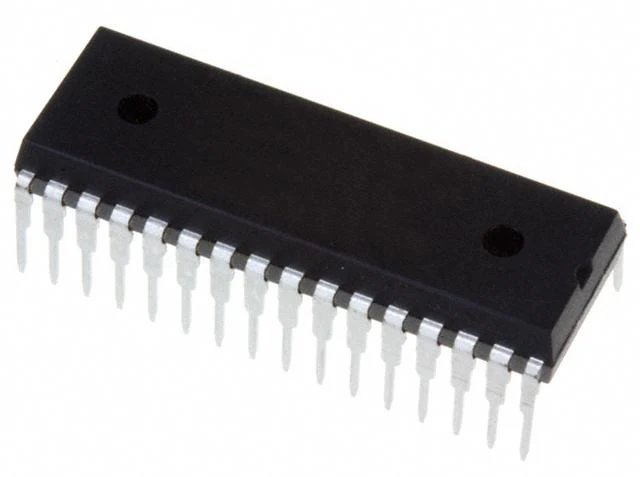

Microchip AT27C040-90PU AT27C040-90PU Eeprom 4 Mbit 512K x 8bit 90 ns DIP-32 -40 °C to 85

The AT27C040-90PU is a 4194304-bit low-power high-performance one-time programmable Read-Only Memory (OTP EPROM) organized as 512k by 8-bit. The AT27C040 requires only one 5V power supply in normal Read mode operation. Any byte can be accessed in less than 70ns, eliminating the need for speed reducing wait states on high-performance microprocessor systems. The scaled CMOS technology provides low active power consumption and fast programming. Power consumption is typically 8mA in active mode and less than 10µA in standby mode. The AT27C040 is available in a choice of industry standard, JEDEC-approved. The device features two-line control (CE, OE) to eliminate bus contention in high-speed systems. The AT27C040 has additional features to ensure high quality and efficient production use. The rapid programming algorithm reduces the time required to program the part and guarantees reliable programming. Programming time is typically only 100µs/byte.

• 70ns fast read access time
• Low-power CMOS operation - 100µA max standby
• 5V ±10% Supply
• High-reliability CMOS technology - 2000V ESD protection
• Rapid programming algorithm - 100µs/byte (typical)
• CMOS and TTL-compatible inputs and outputs
• Integrated product identification code
• Industrial and automotive temperature ranges

Warnings ESD sensitive device, take proper precaution while handling the device.

Other details

Brand	MICROCHIP
Part Number	AT27C040-90PU
Quantity	Each
Technical Data Sheet EN
Product Change Notice EN
