Neewer Field Monitor Mount for Select Gimbals
Neewer 66602717 Overview
Neewer's

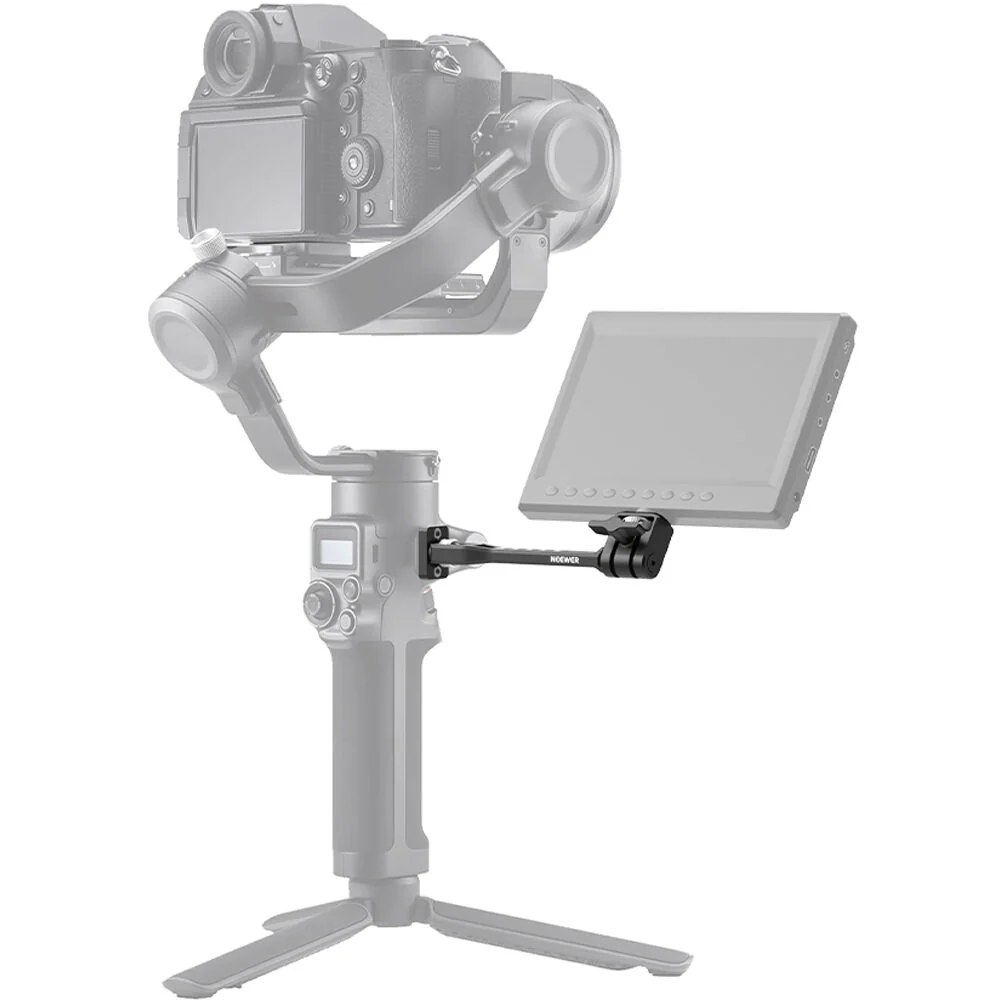

Field Monitor Mount attaches to select camera stabilization systems to safely utilize small field monitors. It can support a combination of monitors and other accessories weighing up to a maximum of 2.2 lb.
This unit is a sturdy and simple solution for effective monitoring when operating handheld gimbal systems. Its straightforward design ensures compatibility with a wide range of popular gimbals, including those available separately from DJI, ZHIYUN, and Moza. It attaches to ZHIYUN gimbals directly via its built-in rosette. For gimbals without this innate capability, Neewer has packaged the Field Monitor Mount with a rosette plate that easily mounts to DJI and Moza gimbals with two included M4 screws.
The mount extends 5.75' outwards, providing the necessary space to accommodate 7" monitors, the maximum size recommended by Neewer. They are held in place by the mounting brackets captive 1/4-20" thumbscrew, which allows for one-handed rigging. This end is also equipped with a 360° tilting mechanism for precisely adjusting monitors. Along the anodized aluminum arm, one can find four evenly-spaced mounting threads for accessories equipped with 1/4"-20 studs, providing the necessary flexibility when building rigs with cumbersome peripherals like transmitters or microphones.
In the Box
- Neewer Field Monitor Mount for Select Gimbals
- Rosette Plate
- 2 x M4 Screw
- Hex Key
- Limited 2-Year Manufacturer Warranty
Neewer 66602717 Specs
General
| Compatibility |
DJI Ronin S / Ronin SC / Ronin S 2 / Ronin SC 2 / Ronin S 3 / Ronin S 3 Pro
ZHIYUN CRANE 2S / CRANE 3 / CRANE 3S / WEEBILL S / WEEBILL LAB Moza AirCross 2 |
Environmental
| Environmental Protection |
No
|
Physical
| Mounting |
Top: 4 x 1/4"-20 Female Thread
Side: 1 x 1/4"-20 Monitor Mounting Thumbscrew Bottom: 1 x Rosette |
| Load Capacity |
2.2 lb / 1 kg
|
| Color |
Black
|
| Material of Construction |
Aluminum
|
| Dimensions |
5.75 x 1.42 x 1.34" / 14.61 x 3.61 x 3.4 cm
|
| Weight |
3.88 oz / 0.11 kg
|
Packaging Info
| Package Weight |
0.3 lb
|
| Box Dimensions (LxWxH) |
7.1 x 2.35 x 1.85"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
