Pickering 67-1-C-12/5 67-1-C-12/5 Reed Relay Spdt 12 V 67 Series PCB 150 ohm 3 A

67-1-C-12/5 is a 67 series high voltage dry reed relay. It has small size and encapsulated in plastic package with internal mu-metal magnetic screen. It is constructed by using a lead frame in a Single-in-Line format and features former-less coils which enables a smaller package. The unusual package style allows interesting stacking possibilities when used to construct high density multiplexers or matrices.

• Tungsten plated contacts ensure a long and reliable life
• 1 Form C configuration
• Operating temperature range is -20°C to +85°C
• Coil voltage is 12V, coil resistance is 150 ohm
• Maximum contact resistance is 0.5 ohm
• Maximum operating voltage is 9V, minimum operating voltage is 1.2V
• Power rating is 100W, maximum switch current is 3A
• Maximum switching volts is 2500V
• Minimum stand-off volts is 5000V
• Life expectancy is 10â�¸

Footnotes High voltages and stray capacitance can generate very high current pulses, which can damage the contact plating causing welding of the reed switch.

Other details

Brand	PICKERING
Part Number	67-1-C-12/5
Quantity	Each
Technical Data Sheet EN

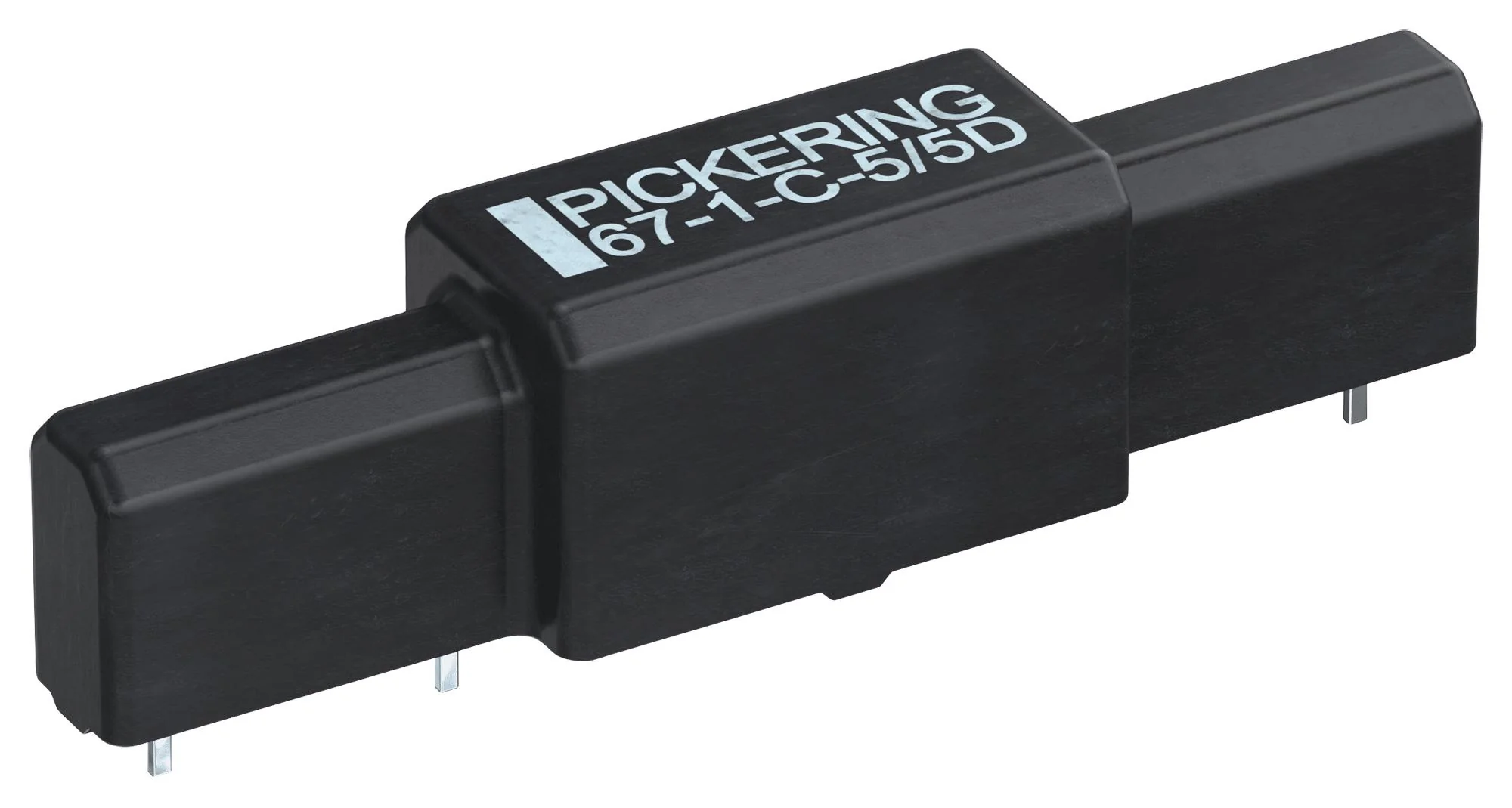

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
