POTTER&BRUMFIELD - TE CONNECTIVITY KRPA-11DG-110 RELAY, DPDT, 240VAC, 10A
This is a RELAY, DPDT, 240VAC, 10A product from POTTER&BRUMFIELD - TE CONNECTIVITY with the model number KRPA-11DG-110
Product details
| Contact Material | Silver Cadmium Oxide |
| Relay Mounting | Socket |
| Coil Type | Non Latching |
| Coil Resistance | 10kohm |
| Product Range | KRPA Series |
| Relay Terminals | Quick Connect |
| Contact Current | 10A |
| Approvals & Standards | CSA, UL |
| Contact Voltage VAC | 240VAC |
| Coil Voltage | 110VDC |
| Contact Configuration | DPDT |
| Contact Voltage VDC | - |
Other details
| Brand | POTTER&BRUMFIELD - TE CONNECTIVITY |
| Part Number | KRPA-11DG-110 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| 3D Product Image EN | |

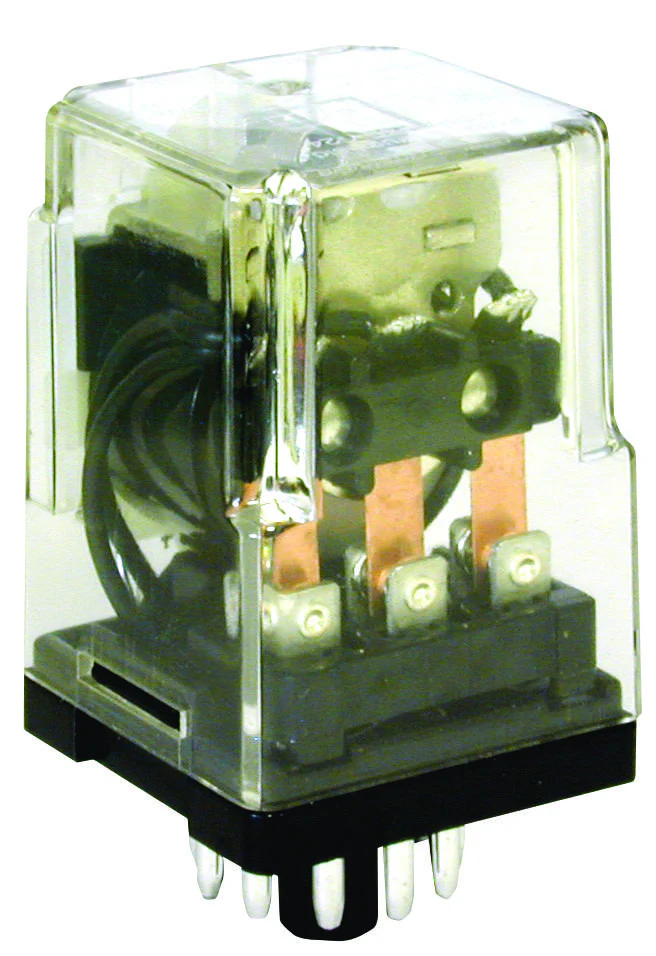

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
