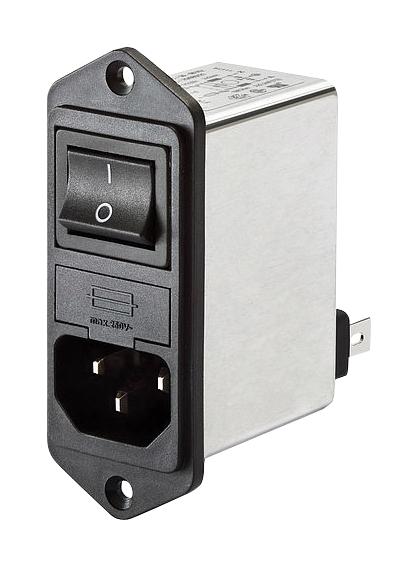

Schaffner FN285-1-06 IEC Filter 0.22 µF 250 VAC Mains 1 A Quick Connect 7.5 mH
The FN 280 series compact filtered Power Entry Module combines an IEC inlet, a mains filter with single or dual-fuse holder and a 2-pole rocker switch in a small form factor. Choosing FN 280 product line brings you the rapid availability of a standard filter associated with the necessary safety acceptances. Standard IEC connector filters are a practical solution helping you to pass EMI system approval in a short time. A wide selection on amperage ratings, fuse options, mounting possibilities and filters for medical applications are designed to offer you the desired solution.
- High conducted attenuation performance
- Rear/front or snap-in mounting
- Single or dual-fuse holder
- 2-pole rocker switch
- Custom-specific versions are available on request
Power Management, Consumer Electronics, Test & Measurement, Medical
Product details
| Capacitance | 0.22µF |
| Voltage Rating | 250VAC |
| Filter Type | IEC, Mains |
| Current Rating | 1A |
| Filter Terminals | Quick Connect |
| Inductance Min | 7.5mH |
| Leakage Current Max | 373µA |
| Product Range | FN 280 Series |
| RoHS Phthalates Compliant | To Be Advised |
Other details
| Brand | SCHAFFNER |
| Part Number | FN285-1-06 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
