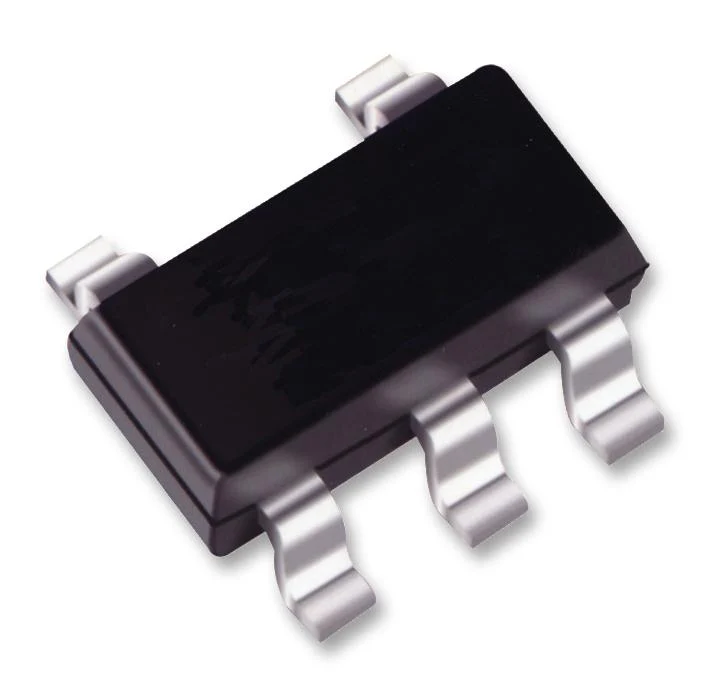

Texas Instruments OPA192IDBVR Operational Amplifier 1 10 MHz 20 V/µs 4.5V to 36V ± 2.25V 18V SOT-23 5 Pins

The OPA192IDBVR is a high voltage precision Operational Amplifier with rail-to-rail input/output. This device offers outstanding DC precision and AC performance. Unique features such as differential input-voltage range to the supply rail, high output current (±65mA), high capacitive load drive of up to 1nF and high slew rate (20V/µs) make the OPA192 a robust, high-performance operational amplifier for high-voltage industrial applications.

• EMI/RFI filtered inputs
• Differential input voltage range to supply rail
• ±5µV Low offset voltage
• ±0.2µV/°C Low offset voltage drift
• 5.5nV/?Hz at 1kHz Low noise
• 140dB High common-mode rejection
• ±5pA Low bias current
• 1mA/amplifier Low quiescent current
• 1nF High capacitive load drive capability
• Green product and no Sb/Br

Applications

Test & Measurement, Signal Processing, Sensing & Instrumentation

Other details

Brand	TEXAS INSTRUMENTS
Part Number	OPA192IDBVR
Quantity	Each (Supplied on Cut Tape)
