Tilta Height-Adjustable Arca-Type 15mm LWS Baseplate (Titanium Gray)
Tilta Arca Adjustable 15mm LWS Baseplate Overview

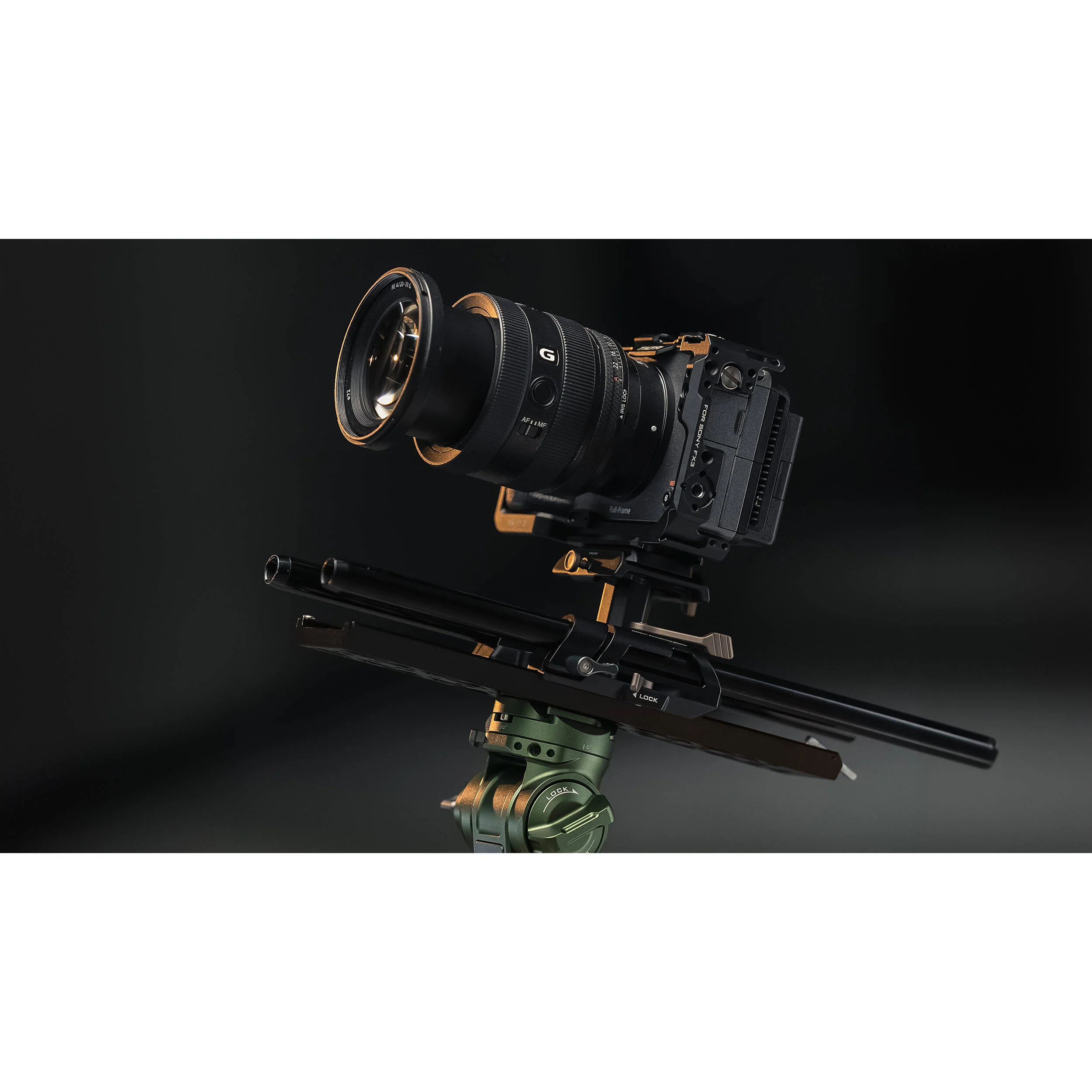

This Height-Adjustable Arca-Type 15mm LWS Baseplate from Tilta features a 15mm LWS rod clamp baseplate to accommodate standard 15mm rods, and a quick release top plate is included for integration with Arca-type tripod systems. The system is height adjustable within a 0.78" range to accommodate a follow focus system or matte box, and it features a range of 0.71 to 1.5" from the rod center to the Arca receiver.
A dovetail clamp on the base is compatible with Tilta dovetail plates, and there are also 1/4"-20 threads on the bottom for mounting onto a tripod, plate, or rig. The Arca-type quick release plate features a 1/4"-20 screw to secure your camera. The baseplate can support a camera rig load weighing up to 10 lb.
Items Included
- Tilta Height-Adjustable Arca-Type 15mm LWS Baseplate (Titanium Gray)
- Arca-Type Quick Release Plate (Titanium Gray)
- 1/4"-20 Screw
- Allen Wrench
- Limited 2-Year Manufacturer Warranty
Additional Resources
No additional resources available
Tilta Arca Adjustable 15mm LWS Baseplate Specs
| Rod Standard |
15 mm LWS / 60 mm Spacing
|
| Camera Mounting |
Quick Release Plate with 1/4"-20 Male Screw
|
| Tripod Mounting |
1/4"-20 Female Thread, Built-In Proprietary Dovetail Plate
|
| Rod Ports |
2x 15 mm Rod Port
|
| Shoe Mounting |
No
|
| Load Capacity |
10 lb / 4.5 kg
|
| Materials |
Aluminum Alloy
|
| Dimensions |
7.5 x 5.5 x 3.5" / 190.5 x 139.7 x 88.9 mm
|
| Weight |
1 lb / 0.5 kg
|
| Support Type |
Baseplate
|
| Grip Type |
No
|
| Camera Compatibility |
Universal
|
| Package Weight |
0.8 lb
|
| Box Dimensions (LxWxH) |
6.1 x 4.6 x 2.7"
|
