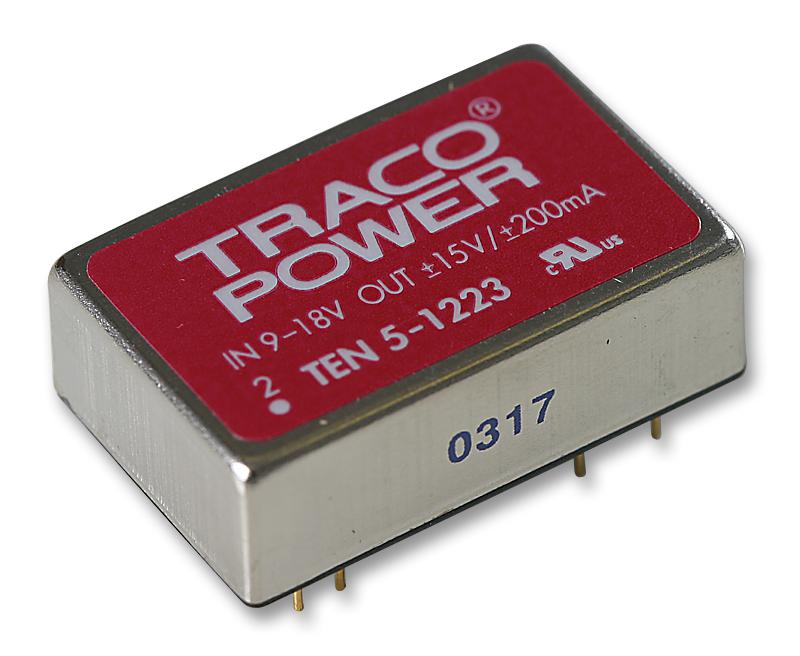

TRACOPOWER TEN 5-1223 Isolated Board Mount DC/DC Converter, Metal Case, 2 Output, 6 W, 15 V, 200 mA, -15 V, 200 mA

This is a Isolated Board Mount DC/DC Converter, Metal Case, 2 Output, 6 W, 15 V, 200 mA, -15 V, 200 mA product from TRACOPOWER with the model number TEN 5-1223

Product details

No. of Outputs	2 Output
Output Power Max	6W
Output Voltage - Output 1	15V
Output Current - Output 1	200mA
Output Voltage - Output 2	-15V
Output Current - Output 2	200mA
Output Voltage - Output 3	-
Output Current - Output 3	-
Product Range	TEN 5 Series
Input Voltage DC Min	9V
Input Voltage DC Max	18V
DC / DC Converter Output Type	Fixed
DC / DC Converter Type	DIP
DC / DC Converter Mounting	Through Hole
Approvals & Standards	IEC, UL
Width	20mm
Height	10mm
Depth	32mm

Other details

Brand	TRACOPOWER
Part Number	TEN 5-1223
Quantity	Each
Technical Data Sheet EN
Miscellaneous EN
