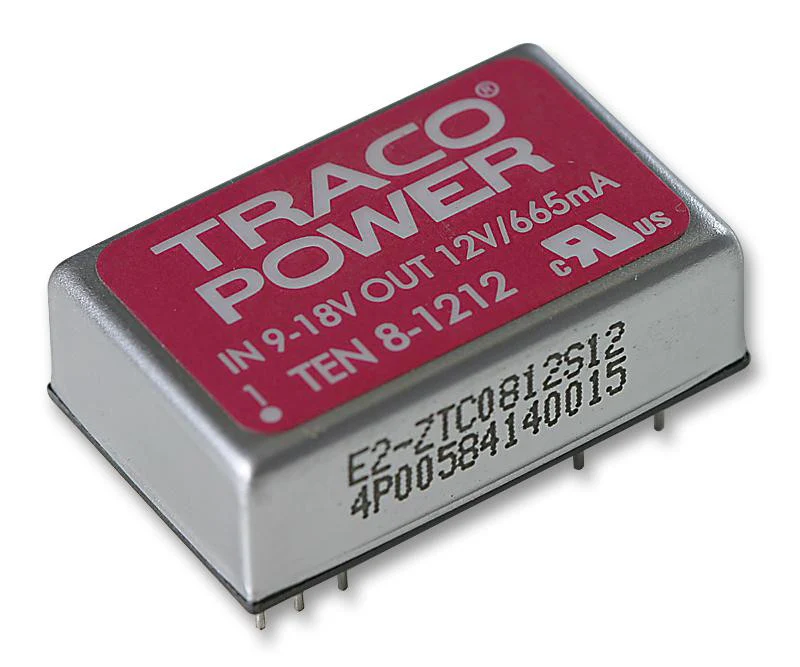

TRACOPOWER TEN 8-1212 Isolated Board Mount DC/DC Converter, Metal Case, 1 Output, 8 W, 12 V, 665 mA

This is a Isolated Board Mount DC/DC Converter, Metal Case, 1 Output, 8 W, 12 V, 665 mA product from TRACOPOWER with the model number TEN 8-1212

Product details

Output Power Max	8W
Input Voltage DC Min	9V
DC / DC Converter Mounting	Through Hole
Output Voltage - Output 2	-
Output Current - Output 2	-
Depth	32mm
Width	20.3mm
Product Range	TEN-8 Series
DC / DC Converter Type	DIP
Approvals & Standards	IEC, UL
Output Voltage - Output 3	-
Output Voltage - Output 1	12V
Output Current - Output 3	-
No. of Outputs	1 Output
DC / DC Converter Output Type	Fixed
Input Voltage DC Max	18V
Output Current - Output 1	665mA
Height	10.2mm

Other details

Brand	TRACOPOWER
Part Number	TEN 8-1212
Quantity	Each
Technical Data Sheet EN
Miscellaneous EN
