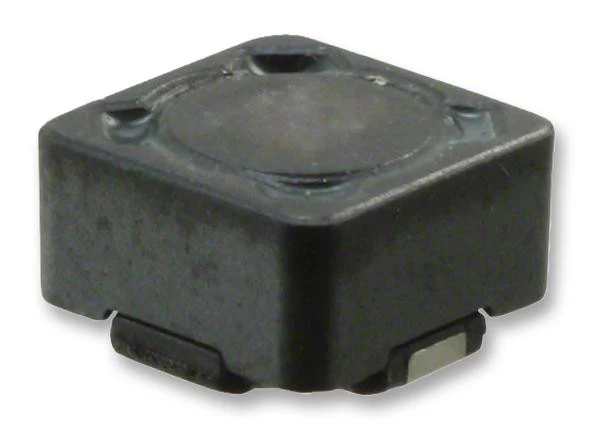

WURTH ELEKTRONIK 744771215 Surface Mount Power Inductor, WE-PD Series, 150 µH, 1.21 A, 1.43 A, Shielded, 0.23 ohm
This is a Surface Mount Power Inductor, WE-PD Series, 150 µH, 1.21 A, 1.43 A, Shielded, 0.23 ohm product from WURTH ELEKTRONIK with the model number 744771215
Product details
| Product Range | WE-PD Series |
| Inductance | 150µH |
| RMS Current (Irms) | 1.21A |
| Saturation Current (Isat) | 1.43A |
| Inductor Construction | Shielded |
| DC Resistance Max | 0.23ohm |
| Power Inductor Case | 12mm x 12mm x 6mm |
| Inductance Tolerance | ± 20% |
| Packaging | Cut Tape |
Other details
| Brand | WURTH ELEKTRONIK |
| Part Number | 744771215 |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
| Drawing EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
$1.08
Original: $3.60
-70%WURTH ELEKTRONIK 744771215 Surface Mount Power Inductor, WE-PD Series, 150 µH, 1.21 A, 1.43 A, Shielded, 0.23 ohm—
$3.60
$1.08Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
This is a Surface Mount Power Inductor, WE-PD Series, 150 µH, 1.21 A, 1.43 A, Shielded, 0.23 ohm product from WURTH ELEKTRONIK with the model number 744771215
Product details
| Product Range | WE-PD Series |
| Inductance | 150µH |
| RMS Current (Irms) | 1.21A |
| Saturation Current (Isat) | 1.43A |
| Inductor Construction | Shielded |
| DC Resistance Max | 0.23ohm |
| Power Inductor Case | 12mm x 12mm x 6mm |
| Inductance Tolerance | ± 20% |
| Packaging | Cut Tape |
Other details
| Brand | WURTH ELEKTRONIK |
| Part Number | 744771215 |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN | |
| Drawing EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
